THHOMA3C

OUTDOOR WEATHER HUMIDITY 3% 0-10V + NTC 10K-2 TEMP

Overview

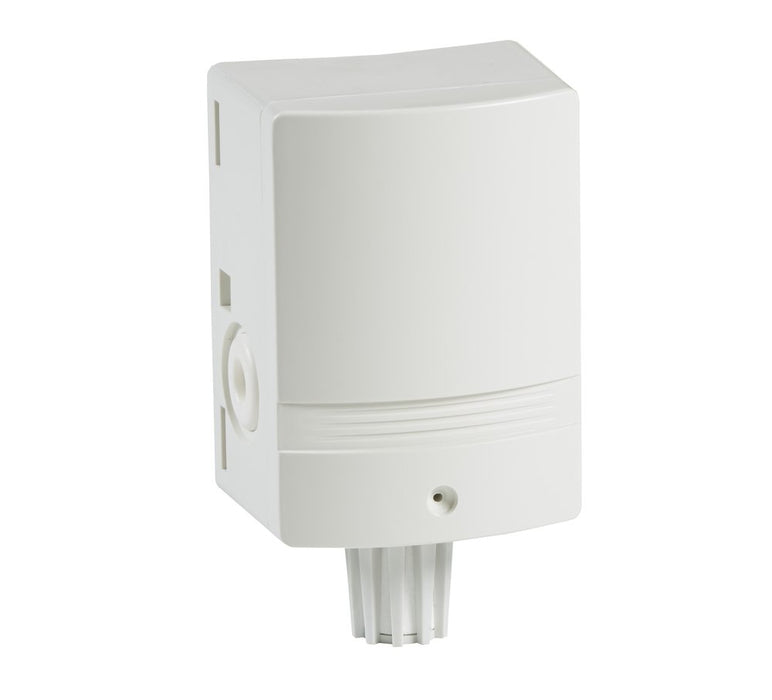

High quality outdoor rated relative humidity transmitter in the NEMA 4X / IP65 Safe Box enclosure. Coated circuit boards are treated to resist moisture and offer accurate measurement with long term stability.

Humidity sensors are also available with optional passive thermistors or RTDs for temperature measurement.

The hinged polycarbonate cover and quick connect wire terminals make installation easy and reduce installation costs.

Features

-Humidity or temperature/humidity option

-Durable NEMA 4X injection-molded watertight enclosure

-Quick Connect wire terminals

-Dual filters to protect from contamination

-2% / 3% /5% RH accuracies

-On-board DIP switches for selecting output in the field (0-5V, 0-10V & 4-20mA)

-Passive temperature with NTC or RTD elements

-Coated circuit boards for moisture resistance

-Compatible with most control systems

-1/2” NPT conduit adapter included

-CE & RoHS compliant

-5 year limited warranty
