THHDSA5C

DUCT SAFE HUMIDITY 5% 10K TYPE 2 0-10V

Overview

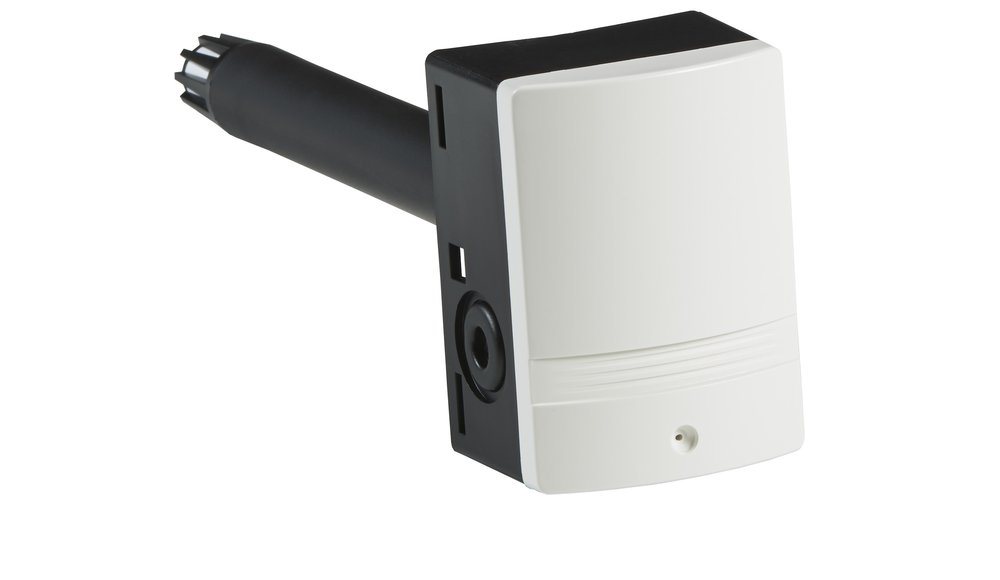

High quality duct mount relative humidity transmitter in the Safe Box enclosure. Coated circuit boards are treated to resist moisture and offer accurate measurement with long term stability.

Humidity sensors are also available with optional passive thermistors or RTDs for temperature measurement.

The hinged polycarbonate cover and quick connect wire terminals make installation easy and reduce installation costs.

Features

- Humidity or temperature/humidity option

-Durable NEMA 4X injection-molded watertight enclosure

-Quick Connect wire terminals

-NTC thermistors, RTD elements and transmitters available

-Dual filters to protect from contamination

-2% / 3% /5% RH accuracies

-Onboard DIP switches for selecting output in the field (0-5V, 0-10V & 4-20mA)

-Coated circuit boards for moisture resistance

-Adjustable length

-Installed anti-vibration pad on flange

-Compatible with most control systems

-1/2” NPT threaded port on bottom with additional punch-outs

-CE & RoHS compliant

-5 year limited warranty
