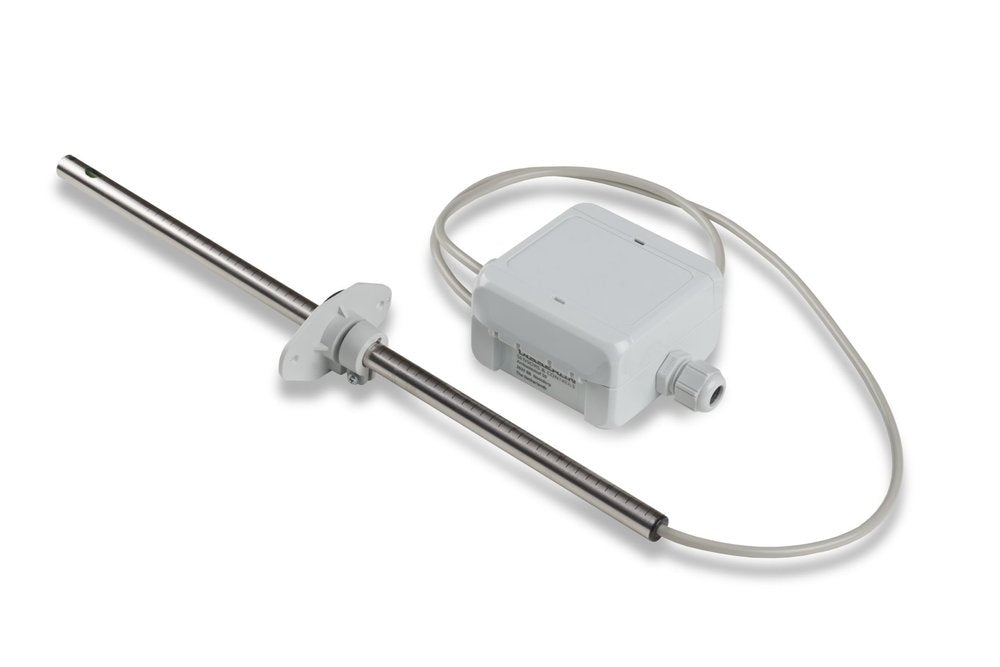

THFDEA0C

DUCT AIR FLOW 0..2000ft/min (0..10m/s), 0-10V

Overview

Air velocity transmitters are dedicated for accurate and reliable measurement in building automation and ventilation applications. Transmitters employ sensor element which operates on the thermal anemometer principle based on thin film technology.

The Tasseron Air Flow sensors offer two field selectable measuring ranges: 0...10 m/s (0...2000ft/min) and 0...20 m/s (0...4000ft/min). The ranges are preset to the desired range able to be easily changed. The output signal is fixed analog 0-10V for the programmed range.

The probe is clearly marked with measurements for accurate installation. The sensor is also equipped with an adjustable mounting flange to allow for proper depth installation depending on the application requirements.

Features

-High accuracy and long term stability

-Resistance to pollution and mechanical stress

-Duct mount and remote probe versions available

-Analog 0-10V output signal

-Easy installation with adjustable mounting flange

-Field selectable ranges of 0..10m/s (0...2000ft/min) or 0..20m/s (0..4000ft/min)

-Clearly marked depth measurement markings on probe

-CE & RoHS compliant

-5 year limited warranty

-Made in the Netherlands
