THCRAZZC

ROOM CO2 0-2000ppm 0-10V

Overview

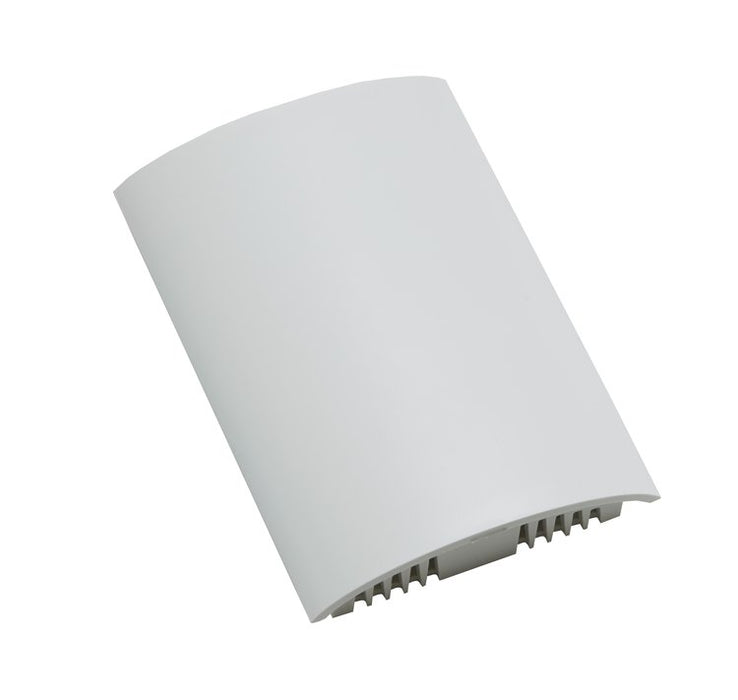

High quality room CO2 sensor and/or CO2 with Relative Humidity and passive temperature sensor in an attractive low-profile plastic enclosure.

Dual channel technology and a solid state infrared source ensures long lifetime, excellent accuracy and repeatability with low drift and very fast start up. Very accurate CO2 measurement from 400-10,000 ppm (CO2) and 0-100% (RH) with 2% accuracy.

Standard versions complete with on board DIP switches that provide output signal change in the field for 0-5V, 0-10V and 4-20mA.

Fixed analog outputs or digital BACnet or MODBUS are also available for custom orders.

Features

-CO2 or Combination CO2/RH/Temp options

-Dual beam infrared sensing technology (NDIR)

-Quick Connect wire terminals

-Passive NTC thermistors and RTD elements available

-Standard Analog Output Signals 0-5V, 0-10V, 4-20mA for both CO2 and in CO2/RH combo options

-Digital MODBUS output available for custom orders

-0-2000 ppm, 0-5000 ppm or 0-10,000 ppm measurement range

-Low profile ABS housing with Insulated back

-CE & RoHS compliant

-5 year limited warranty

-Made in the USA
