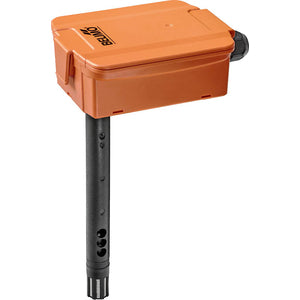

22DTC-11 | Duct/Immersion sensor Temperature active

Duct sensor CO₂ / Temperature active, 0...5 V, 0...10 V, Probe length 180 mm, Probe diameter 19.5 mm

CO₂ and Temperature Sensor

• Voltage AC/DC
  AC/DC 24 V

• Electrical connection
  Terminals

• Measured values
  CO₂
  Temperature

• Output signal
  0...5 V
  0...10 V

• Measuring range CO₂
  Default setting: 0...2000 ppm
  With A-22G-A05: 0...5000 ppm

• Measuring range temperature
  0...50°C [32...122°F]

• Output Voltage [Range]
  2 x 0...5 V, 0...10 V, min. resistance 10 kΩ

• Output signal active note
  Output 0...5/10 V with Jumper adjustable

• Probe length
  180 mm
