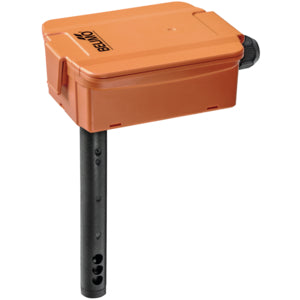

22DC-13 | Duct sensor CO₂ active

Duct sensor CO₂ active, 4...20 mA, 0...5 V, 0...10 V, Probe length 150 mm, Probe diameter 19.5 mm

CO₂ and Temperature Sensor

• Voltage AC/DC
  AC/DC 24 V

• Electrical connection
  Terminals

• Measured values
  CO₂

• Output signal
  4...20 mA
  0...5 V
  0...10 V

• Measuring range CO₂
  Default setting: 0...2000 ppm
  With A-22G-A05: 0...5000 ppm

• Measuring range temperature
  0...50°C [32...122°F]

• Output Voltage [Range]
  1 x 0...5 V, 0...10 V, min. resistance 10 kΩ (Type 22DC-13)
  2 x 0...5 V, 0...10 V, min. resistance 10 kΩ (Type 22DTC-13)

• Output Current [Range]
  1 x 4...20 mA, max. resistance 500 Ω (Type 22DC-13)
  2 x 4...20 mA, max. resistance 500 Ω (Type 22DTC-13)

• Output signal active note
  Output 0...5/10 V with Jumper adjustable

• Probe length
  150 mm
