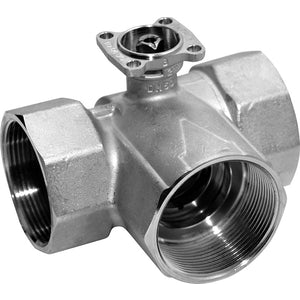

R3025-6P3-S2

Valve

Pattern:
3-way

kvs:
6.3 m³/h

Fluid:
Cold and warm water, water with glycol up to max. 50% vol.

Fluid temperature:
-10...120°C [14...248°F]

Fluid temperature note:
At a fluid temperature of -10...2°C, a spindle heater or a valve neck extension is recommended. The allowed fluid temperature can be limited, depending on the type of actuator. Limitations can be found in the respective data sheets of the actuators.

Close-off pressure:
1400 kPa

Differential pressure Δpmax:
350 kPa

Differential pressure note:
200 kPa for low-noise operation

Flow characteristic:

• A – AB: equal percentage
• B – AB: linear

Leakage rate:

• A – AB: air-bubble tight, leakage rate A
• B – AB: Leakage class I, 1...2% of the Kvs value

Pipe connection:
Internal thread
