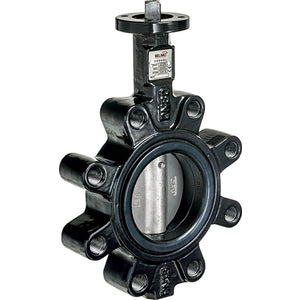

D665NL

Butterfly valve, 2-way, DN 65, Lug types PN 10 / 16, ps 1600 kPa, Kvs 50 m³/h, Kvmax 170 m³/h, Fluid temperature -10...120°C [14...248°F]

Valve Specifications

Pattern:
2-way

kvs:
50 m³/h

Fluid:
Cold and warm water, water with glycol up to a maximum of 50% vol.

Fluid Temperature:
-10 to 120°C (14 to 248°F)

Flow Characteristic:

• 0 to 100%: S-form
• 0 to 60%: Equal percentage

Leakage Rate:
Tight, leakage rate A

Pipe Connection:
Flange
