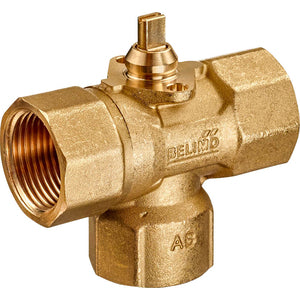

C320Q-J | Changeover zone valve

Changeover zone valve, 3-way, DN 20, Internal thread, Rp 3/4", PN 25, ps 1600 kPa, Kvs 4 m³/h, Fluid temperature 2...100°C [36...212°F] (with actuator 2...90°C)

Valve Specifications

• Pattern:
  3-way

• kvs:
  4 m³/h

• Fluid:
  Cold and warm water, water with glycol up to max. 50% vol.

• Fluid Temperature:

  • Range: 2 to 100°C [36 to 212°F]
  • With Actuator: 2 to 90°C

• Close-off Pressure:
  280 kPa

• Differential Pressure (Δpmax):
  280 kPa

  • Note: 50 kPa for low-noise operation

• Leakage Rate:
  Air-bubble tight, leakage rate A

• Pipe Connection:
  Internal thread
