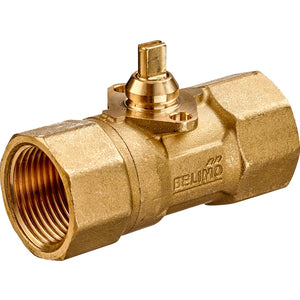

C225Q-K | Zone valve

Zone valve, 2-way, DN 25, Internal thread, Rp 1", PN 25, ps 1600 kPa, Kvs 7 m³/h, Fluid temperature 2...100°C [36...212°F] (with actuator 2...90°C)

Valve Specifications

• Pattern:
  2-way

• Nominal Flow Rate (kvs):
  7 m³/h

• Fluid:
  Cold and warm water, water with glycol up to max. 50% vol.

• Fluid Temperature:

  • Range: 2 to 100°C [36 to 212°F]
  • With Actuator: 2 to 90°C

• Close-off Pressure:
  520 kPa

• Differential Pressure (Δpmax):
  280 kPa

  • Note: 50 kPa for low-noise operation

• Flow Characteristic:
  Equal percentage

• Leakage Rate:
  Air-bubble tight, leakage rate A

• Pipe Connection:
  Internal thread
