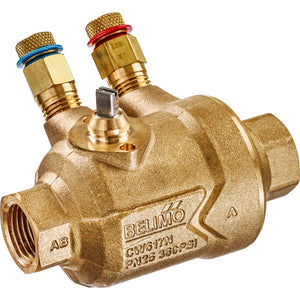

C220QPT-F | PI Zone Valve (PIQCV)

PI Zone Valve (PIQCV), 2-way, DN 20, Internal thread, Rp 3/4", PN 25, ps 1600 kPa, V'nom 980 l/h, Fluid temperature -20...120°C [-4...248°F] (with actuator 2...90°C), with measuring ports (P/T ports)

Valve Specifications

• Pattern:
  2-way

• Nominal Flow Rate (V'nom):

  • [l/h]: 980
  • [l/s]: 0.272

• Fluid:
  Cold and warm water, water with glycol up to max. 50% vol.

• Fluid Temperature:

  • Range: -20 to 120°C [-4 to 248°F]
  • With Actuator: 2 to 90°C

• Differential Pressure:
  16 to 350 kPa

• Close-off Pressure:
  1400 kPa

• Flow Characteristic:
  Equal percentage

• Leakage Rate:
  Air-bubble tight, leakage rate A

• Pipe Connection:
  Internal thread
