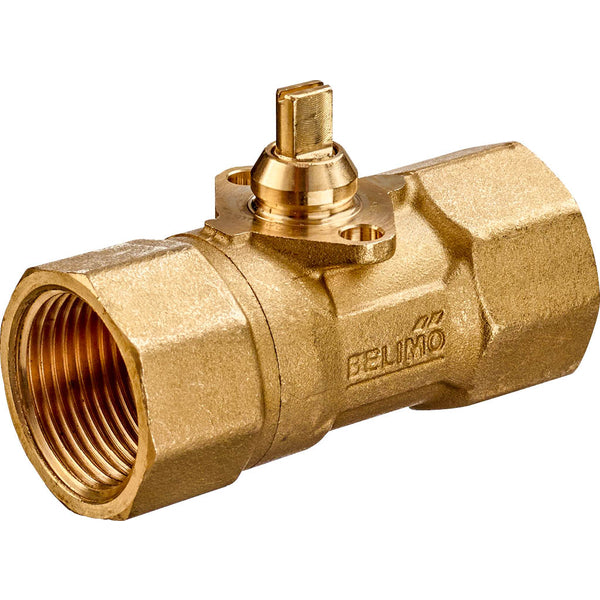

C215Q-J.1 | Zone valve

Zone valve, 2-way, DN 15, Internal thread, Rp 1/2", PN 25, ps 1600 kPa, Kvs 4.8 m³/h, Fluid temperature 2...100°C [36...212°F] (with actuator 2...90°C)
Multipack 36 pcs.

Valve Specifications

• Pattern:
  2-way

• kvs:
  4.8 m³/h

• Fluid:
  Cold and warm water, water with glycol up to max. 50% vol.

• Fluid Temperature:
  2 to 100°C [36 to 212°F]
  (With actuator: 2 to 90°C)

• Close-off Pressure:
  520 kPa

• Differential Pressure Δpmax:
  280 kPa
  (50 kPa for low-noise operation)

• Flow Characteristic:
  Equal percentage

• Leakage Rate:
  Air-bubble tight, leakage rate A

• Pipe Connection:
  Internal thread
