THTIEA4A

IMMERSION EURO NTC 10K-2 4" ADAPTER 1/2" NPT

OVERVIEW

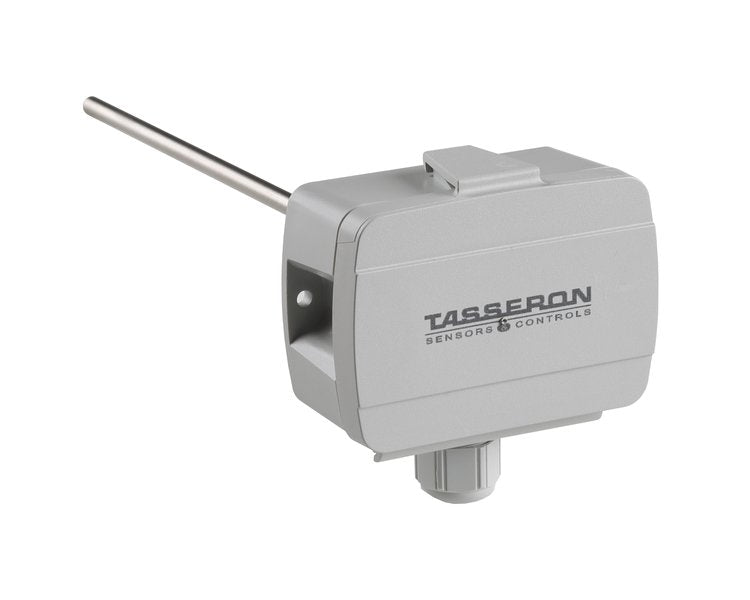

The Tasseron Euro Immersion Temperature Sensor provides a high quality solution for both commercial and industrial applications. The Euro housing offers weatherproof NEMA 4X/IP 66 ratings and is produced with injection-molded PC/ABS material and stainless steel AISI 316 probe.

The sensor comes standard with a with a thermal paste syringe, 1/2” NPT thermowell either Brass (machined) or Stainless Steel (fabricated), or threaded compression adapters (1/2” or 1/4” NPT).

Accurate thermistors and RTDs ensure low drift and are double encapsulated to guarantee the highest reliability in the field. The Hinged Snap Cover and Quick Connect wire terminals make installation tool-free and reduces costs. The Euro Series is also available with multiple temperature transmitter ranges with 4-20mA analog output.

FEATURES

-Durable injection-molded NEMA 4X / IP66 watertight enclosure
-Complete with brass or stainless steel immersion well (1/2” NPT) or brass -compression adapter (1/2” or 1/4” NPT)
-Available in 2" / 4" / 6” lengths
-Hinged removable snap cover
-AISI 316 stainless steel temperature probe
-1/2” NPT conduit adapter and cable gland strain relief included
-Quick Connect wire terminals
-NTC thermistors, RTD elements or 4-20mA transmitters available
-CE & RoHS compliant
-5 year limited warranty
