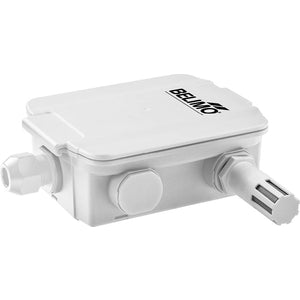

22UTH-110M | Outdoor sensor with weather shield Humidity

Outdoor sensor with weather shield Humidity / Temperature active, 0...5 V, 0...10 V, NTC10k Pre (10k3) (passive)

Temperature and Humidity Sensor

• Voltage AC/DC:
  AC/DC 24 V

• Electrical Connection:
  Terminals

• Measured Values:
  Temperature
  Humidity

• Output Signal:
  0...5 V
  0...10 V
  NTC10k Pre (10k3)

• Measuring Range Humidity:
  0...100% RH non-condensing

• Output Voltage [Range]:
  1 x 0...5 V
  0...10 V
  Min. resistance 10 kΩ

• Output Signal Passive Temperature:
  NTC10k Pre (10k3)

• Output Signal Active Note:
  Output 0...5/10 V with Jumper adjustable
