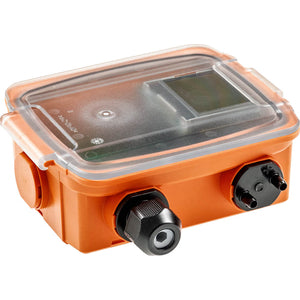

22ADP-18QL | Differential pressure sensor Air

Differential pressure sensor Air, -150...250 Pa, 0...5 V, 0...10 V, 4...20 mA, LCD

Differential Pressure Sensor

• Voltage AC/DC
  AC/DC 24 V

• Electrical connection
  Terminals

• Measured values
  Differential pressure

• Output signal
  0...5 V
  0...10 V
  4...20 mA

• Measuring range pressure
  -150...250 Pa
  -0.6...1 inch WC

• Output Voltage [Range]
  1 x 0...5 V, 0...10 V, min. resistance 10 kΩ

• Output Current [Range]
  1 x 4...20 mA, max. resistance 500 Ω

• Output signal active note
  Output 0...5/10 V selectable with switch

• Display type
  LCD
