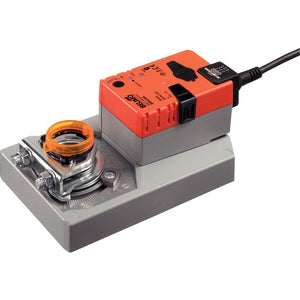

SMQ24A

Actuator

Voltage AC/DC
AC/DC 24 V

Power consumption (running)
15 W

Power consumption (holding)
2 W

Power Consumption For Wire Sizing
26 VA

Connection Supply Control
Cable 1 m, 3x 0.75 mm²

Torque
16 Nm

Control type
Open/close

Direction Of Motion Motor
Selectable with switch: 0 (ccw rotation) / 1 (cw rotation)

Manual override
With push-button, can be locked

Angle of rotation
95°

Running time (motor)
7 s / 90°

Mechanical interface
Universal shaft clamp reversible 12...26.7 mm

Protection category
IP54

Degree Of Protection NEMA
NEMA 2

Enclosure Type
UL Enclosure Type 2

Ambient Temperature
-30...40°C [-22...104°F]
