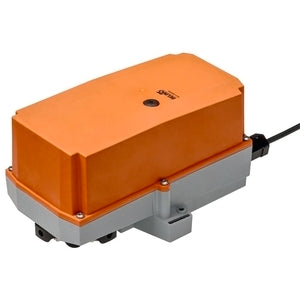

SM24P

Actuator

Voltage AC/DC
AC/DC 24 V

Power consumption (running)
2 W

Power consumption (holding)
0.2 W

Power Consumption For Wire Sizing
4 VA

Connection Supply Control
Cable 1 m, 3x 0.75 mm² (halogen-free)

Torque
20 Nm

Control type
Open/close, 3-point

Direction Of Motion Motor
Selectable with switch: 0 (ccw rotation) / 1 (cw rotation)

Manual override
With push-button, can be locked

Angle of rotation
95°

Running time (motor)
150 s / 90°

Mechanical interface
Universal shaft clamp 14...20 mm

Protection category
IP66/67

Degree Of Protection NEMA
NEMA 4X

Enclosure Type
UL Enclosure Type 4X

Ambient Temperature
-30...50°C [-22...122°F]
