SM24A-SR
by Belimo
Original price
$0
Original price
$326.00
-
Original price
$326.00
Original price
Current price
$326.00
$326.00
-
$326.00
Current price
$326.00

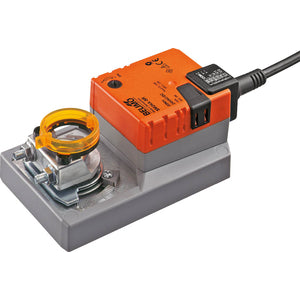

Rotary actuator, 20 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54
Actuator
- Voltage AC/DC: AC/DC 24 V
- Power Consumption (running): 2 W
- Power Consumption (holding): 0.4 W
- Power Consumption For Wire Sizing: 4 VA
- Connection Supply Control: Cable 1 m, 4x 0.75 mm²
- Torque: 20 Nm
- Control Type: DC 2...10 V
- Direction Of Motion Motor: Selectable with switch 0/1
- Manual Override: With push-button, can be locked
- Angle of Rotation: 95°
- Running Time (motor): 150 s / 90°
- Mechanical Interface: Universal shaft clamp reversible 10...20 mm
- Protection Category: IP54
- Degree Of Protection NEMA: NEMA 2
- Enclosure Type: UL Enclosure Type 2
- Ambient Temperature: -30...50°C [-22...122°F]
