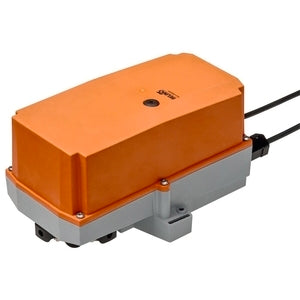

SM230P-S
Rotary actuator (RobustLine), 20 Nm, AC 100...240 V, Open/close, 3-point, 150 s, 1x SPDT, IP66/67
Voltage AC/DC:
AC 100...240 V
Power consumption (running):
2.5 W
Power consumption (holding):
0.6 W
Power Consumption For Wire Sizing:
6 VA
Auxiliary switches:
1x SPDT
Connection Supply Control:
Cable 1 m, 3x 0.75 mm² (halogen-free)
Connection Auxiliary Switch:
Cable 1 m, 3x 0.75 mm² (halogen-free)
Torque:
20 Nm
Control type:
Open/close, 3-point
Direction Of Motion Motor:
Selectable with switch 0 (ccw rotation) / 1 (cw rotation)
Manual override:
With push-button, can be locked
Angle of rotation:
95°
Running time (motor):
150 s / 90°
Mechanical interface:
Universal shaft clamp 14...20 mm
Protection category:
IP66/67
Degree Of Protection NEMA:
NEMA 4X
Enclosure Type:
UL Enclosure Type 4X
Ambient Temperature:
-30...50°C [-22...122°F]
