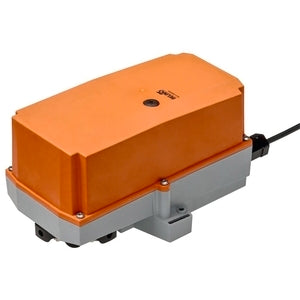

SM230P

Voltage AC/DC:
AC 100...240 V

Power consumption (running):
2.5 W

Power consumption (holding):
0.6 W

Power Consumption For Wire Sizing:
6 VA

Connection Supply Control:
Cable 1 m, 3x 0.75 mm² (halogen-free)

Torque:
20 Nm

Control type:
Open/close, 3-point

Direction Of Motion Motor:
Selectable with switch 0 (ccw rotation) / 1 (cw rotation)

Manual override:
With push-button, can be locked

Angle of rotation:
95°

Running time (motor):
150 s / 90°

Mechanical interface:
Universal shaft clamp 14...20 mm

Protection category:
IP66/67

Degree Of Protection NEMA:
NEMA 4X

Enclosure Type:
UL Enclosure Type 4X

Ambient Temperature:
-30...50°C [-22...122°F]
