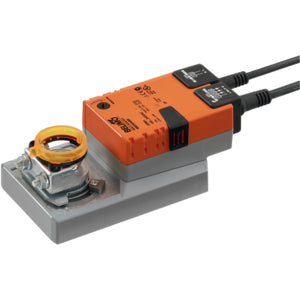

SM230ASR
by Belimo
Original price
$338.00
-
Original price
$338.00
Original price
$338.00
$338.00
-
$338.00
Current price
$338.00
Rotary actuator, 20 Nm, AC 100...240 V, 2...10 V, 150 s, IP54
Voltage AC/DC:
AC 100...240 V
Power consumption (running):
3.5 W
Power consumption (holding):
1 W
Power Consumption For Wire Sizing:
6.5 VA
Connection Supply:
Cable 1 m, 2x 0.75 mm²
Connection Control:
Cable 1 m, 4x 0.75 mm²
Torque:
20 Nm
Control type:
DC 2...10 V
Direction Of Motion Motor:
Selectable with switch 0/1
Manual override:
With push-button, can be locked
Angle of rotation:
95°
Running time (motor):
150 s / 90°
Mechanical interface:
Universal shaft clamp reversible 10...20 mm
Protection category:
IP54
Degree Of Protection NEMA:
NEMA 2
Enclosure Type:
UL Enclosure Type 2
Ambient Temperature:
-30...50°C [-22...122°F]
