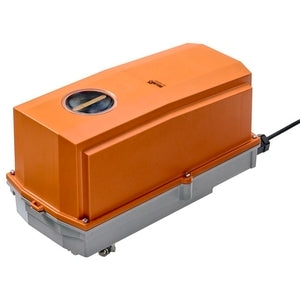

SFG-L
by Belimo
Original price
$1,235.00
-
Original price
$1,235.00
Original price
$1,235.00
$1,235.00
-
$1,235.00
Current price
$1,235.00
Rotary actuator fail-safe, 20 Nm, AC 24...240 V / DC 24...125 V, Open/close, 75 s, IP66/67
Voltage AC/DC:
AC 24...240 V / DC 24...125 V
Power consumption (running):
7 W
Power consumption (holding):
3.5 W
Power Consumption For Wire Sizing:
18 VA
Connection Supply Control:
Cable 1 m, 2x 0.75 mm² (halogen-free)
Torque:
20 Nm
Control type:
Open/close
Direction of rotation (fail-safe):
L (ccw)
Manual override:
By means of hand crank and locking switch
Angle of rotation:
95°
Running time (motor):
75 s / 90°
Running time (fail-safe):
<20 s
Mechanical interface:
Universal shaft clamp 12...26.7 mm
Protection category:
IP66/67
Degree Of Protection NEMA:
NEMA 4X
Enclosure Type:
UL Enclosure Type 4X
Ambient Temperature:
-30...50°C [-22...122°F]
