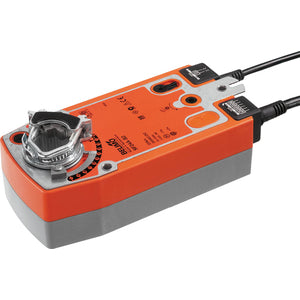

SFA-S2

Voltage AC/DC:
AC 24...240 V / DC 24...125 V

Power consumption (running):
7 W

Power consumption (holding):
3.5 W

Power Consumption For Wire Sizing:
18 VA

Auxiliary switches:
2x SPDT

Connection Supply Control:
Cable 1 m, 2x 0.75 mm²

Connection Auxiliary Switch:
Cable 1 m, 6x 0.75 mm²

Torque:
20 Nm

Control type:
Open/close

Direction Of Motion Motor:
Selectable by mounting L/R

Direction of rotation (fail-safe):
Selectable by mounting L/R

Manual override:
By means of hand crank and locking switch

Angle of rotation:
95°

Running time (motor):
75 s / 90°

Running time (fail-safe):
<20 s

Mechanical interface:
Universal shaft clamp 10...25.4 mm

Protection category:
IP54

Degree Of Protection NEMA:
NEMA 2

Enclosure Type:
UL Enclosure Type 2

Ambient Temperature:
-30...50°C [-22...122°F]
