PMCA-S2-T
by Belimo
Original price
$2,073.00
-
Original price
$2,073.00
Original price
$2,073.00
$2,073.00
-
$2,073.00
Current price
$2,073.00

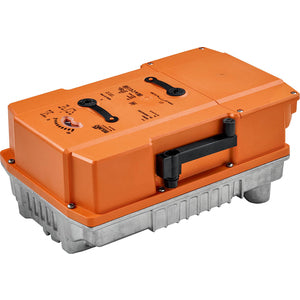

Rotary actuator, 160 Nm, AC 24...240 V / DC 24...125 V, Open/close, 3-point, 35 s, 2x SPDT, IP66/67, Terminals
Actuator
Voltage AC/DC:
AC 24...240 V / DC 24...125 V
Power Consumption (Running):
20 W
Power Consumption (Holding):
6 W
Power Consumption For Wire Sizing:
- With 24 V: 19 VA
- With 240 V: 49 VA
Auxiliary Switches:
2x SPDT
Connection Supply Control:
Terminals 2.5 mm²
Connection Auxiliary Switch:
Terminals 2.5 mm²
Torque:
160 Nm
Control Type:
- Open/close
- 3-point
Direction of Motion (Motor):
Electronically reversible
Manual Override:
Hand lever
Angle of Rotation:
95°
Running Time (Motor):
35 s / 90°
Running Time Motor Variable:
30...120 s
Mechanical Interface:
Form fit 17x17 mm
Protection Category:
IP66/67
Degree of Protection NEMA:
NEMA 4X
Enclosure Type:
UL Enclosure Type 4X
Ambient Temperature:
-30...50°C [-22...122°F]
