NMQ24A
by Belimo
Original price
$443.00
-
Original price
$443.00
Original price
$443.00
$443.00
-
$443.00
Current price
$443.00

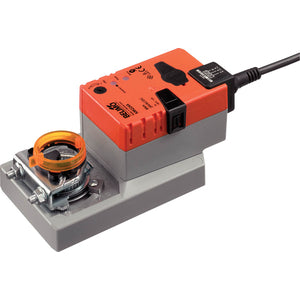

Very fast running rotary actuator, 8 Nm, AC/DC 24 V, Open/close, 4 s, IP54
Actuator
Voltage AC/DC:
AC/DC 24 V
Power Consumption (Running):
13 W
Power Consumption (Holding):
2 W
Power Consumption for Wire Sizing:
23 VA
Connection Supply Control:
Cable 1 m, 3x 0.75 mm²
Torque:
8 Nm
Control Type:
Open/close
Direction of Motion Motor:
Selectable with switch 0 (ccw rotation) / 1 (cw rotation)
Manual Override:
With push-button, can be locked
Angle of Rotation:
95°
Running Time (Motor):
4 s / 90°
Mechanical Interface:
Universal shaft clamp 8...26.7 mm
Protection Category:
IP54
Degree of Protection NEMA:
NEMA 2
Enclosure Type:
UL Enclosure Type 2
Ambient Temperature:
-30...40°C [-22...104°F]
