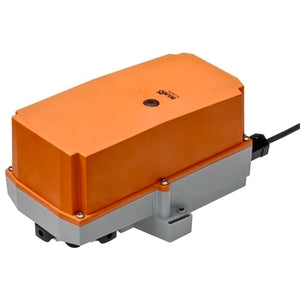

NM24P

Actuator

Voltage AC/DC:
AC/DC 24 V

Power Consumption (Running):
1.5 W

Power Consumption (Holding):
0.2 W

Power Consumption for Wire Sizing:
3.5 VA

Connection Supply Control:
Cable 1 m, 3x 0.75 mm² (halogen-free)

Torque:
10 Nm

Control Type:
Open/close
3-point

Direction of Motion Motor:
Selectable with switch 0 (ccw rotation) / 1 (cw rotation)

Manual Override:
With push-button, can be locked

Angle of Rotation:
95°

Running Time (Motor):
150 s / 90°

Mechanical Interface:
Universal shaft clamp 10...20 mm

Protection Category:
IP66/67

Degree of Protection NEMA:
NEMA 4X

Enclosure Type:
UL Enclosure Type 4X

Ambient Temperature:
-30...50°C [-22...122°F]
