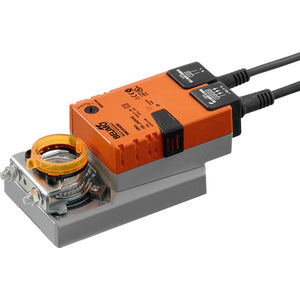

NM230ASR
by Belimo
Original price
$294.00
-
Original price
$294.00
Original price
$294.00
$294.00
-
$294.00
Current price
$294.00
Rotary actuator, 10 Nm, AC 100...240 V, 2...10 V, 150 s, IP54
Actuator
Voltage AC/DC:
AC 100...240 V
Power Consumption (Running):
3.5 W
Power Consumption (Holding):
1 W
Power Consumption for Wire Sizing:
6.5 VA
Connection Supply:
Cable 1 m, 2x 0.75 mm²
Connection Control:
Cable 1 m, 4x 0.75 mm²
Torque:
10 Nm
Control Type:
DC 2...10 V
Direction of Motion Motor:
Selectable with switch 0/1
Manual Override:
With push-button, can be locked
Angle of Rotation:
95°
Running Time (Motor):
150 s / 90°
Mechanical Interface:
Universal shaft clamp 8...26.7 mm
Protection Category:
IP54
Degree of Protection NEMA:
NEMA 2
Enclosure Type:
UL Enclosure Type 2
Ambient Temperature:
-30...50°C [-22...122°F]
