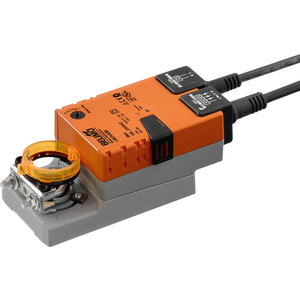

LM230ASR

Actuator

Voltage AC/DC
AC 100...240 V

Power consumption (running)
2 W

Power consumption (holding)
1 W

Power Consumption For Wire Sizing
4 VA

Connection Supply
Cable 1 m, 2x 0.75 mm²

Connection Control
Cable 1 m, 4x 0.75 mm²

Torque
5 Nm

Control type
DC 2...10 V

Direction Of Motion Motor
Selectable with switch 0 (ccw rotation) / 1 (cw rotation)

Manual override
With push-button, can be locked

Angle of rotation
95°

Running time (motor)
150 s / 90°

Mechanical interface
Universal shaft clamp 6...20 mm

Protection category
IP54

Degree Of Protection NEMA
NEMA 2

Enclosure Type
UL Enclosure Type 2

Ambient Temperature
-30...50°C [-22...122°F]
