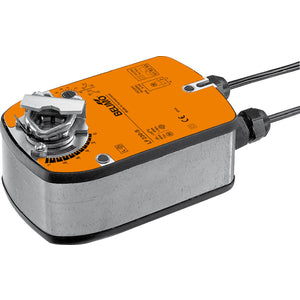

LF230-S

Rotary actuator fail-safe, 4 Nm, AC 100...240 V, Open/close, 75 s, 1x SPDT, IP54

Temperature Sensor

Voltage AC/DC:
AC 100...240 V

Power consumption (running):
3.5 W

Power consumption (holding):
2 W

Power Consumption For Wire Sizing:
6.5 VA

Auxiliary switches:
1x SPDT

Connection Supply Control:
Cable 1 m, 2x 0.75 mm²

Connection Auxiliary Switch:
Cable 1 m, 3x 0.75 mm²

Torque:
4 Nm

Control type:
Open/close

Direction Of Motion Motor:
Selectable by mounting L/R

Direction of rotation (fail-safe):
Selectable by mounting L/R

Manual override:
No

Angle of rotation:
95°

Running time (motor):
75 s / 90°

Running time (fail-safe):
<20 s

Mechanical interface:
Universal shaft clamp 8...16 mm

Protection category:
IP54

Ambient Temperature:
-30...50°C [-22...122°F]
