GM24A
by Belimo
Original price
$383.00
-
Original price
$383.00
Original price
$383.00
$383.00
-
$383.00
Current price
$383.00

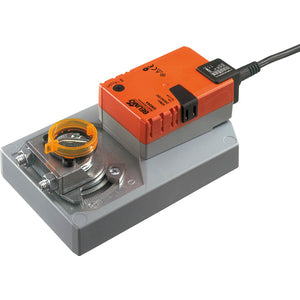

Rotary actuator, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP54
Voltage AC/DC:
AC/DC 24 V
Power consumption (running):
4 W
Power consumption (holding):
2 W
Power Consumption For Wire Sizing:
6 VA
Connection Supply Control:
Cable 1 m, 3x 0.75 mm²
Torque:
40 Nm
Control type:
Open/close
Direction Of Motion Motor:
Selectable with switch 0 (ccw rotation) / 1 (cw rotation)
Manual override:
With push-button, can be locked
Angle of rotation:
95°
Running time (motor):
150 s / 90°
Mechanical interface:
Universal shaft clamp reversible 12...26.7 mm
Protection category:
IP54
Degree Of Protection NEMA:
NEMA 2
Enclosure Type:
UL Enclosure Type 2
Ambient Temperature:
-30...50°C [-22...122°F]
