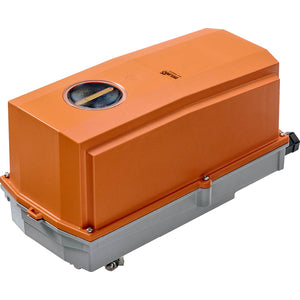

GM230G-T
by Belimo
Original price
$958.00
-
Original price
$958.00
Original price
$958.00
$958.00
-
$958.00
Current price
$958.00
Rotary actuator, 40 Nm, AC 100...240 V, Open/close, 150 s, IP66/67, Terminals
Voltage AC/DC:
AC 100...240 V
Power consumption (running):
5 W
Power consumption (holding):
2.5 W
Power Consumption For Wire Sizing:
9 VA
Connection Supply Control:
Terminals 4 mm² (cable ø4...10 mm, 3-wire)
Torque:
40 Nm
Control type:
Open/close
Direction Of Motion Motor:
Selectable with switch 0 (ccw rotation) / 1 (cw rotation)
Manual override:
With push-button, can be locked (under protective housing)
Angle of rotation:
95°
Running time (motor):
150 s / 90°
Mechanical interface:
Universal shaft clamp 14...26.7 mm
Protection category:
IP66/67
Degree Of Protection NEMA:
NEMA 4X
Enclosure Type:
UL Enclosure Type 4X
Ambient Temperature:
-30...50°C [-22...122°F]
