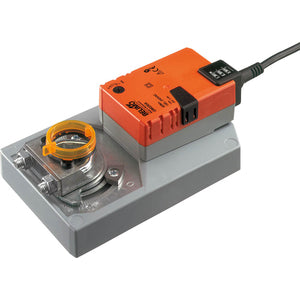

GM230A

Voltage AC/DC:
AC 100...240 V

Power consumption (running):
5 W

Power consumption (holding):
2.5 W

Power Consumption For Wire Sizing:
9 VA

Connection Supply Control:
Cable 1 m, 3x 0.75 mm²

Torque:
40 Nm

Control type:
Open/close

Direction Of Motion Motor:
Selectable with switch 0 (ccw rotation) / 1 (cw rotation)

Manual override:
With push-button, can be locked

Angle of rotation:
95°

Running time (motor):
150 s / 90°

Mechanical interface:
Universal shaft clamp reversible 12...26.7 mm

Protection category:
IP54

Degree Of Protection NEMA:
NEMA 2

Enclosure Type:
UL Enclosure Type 2

Ambient Temperature:
-30...50°C [-22...122°F]
