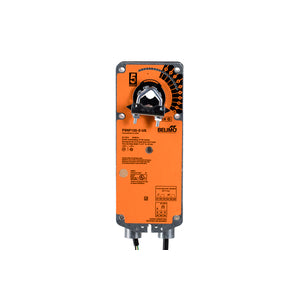

FSNF230-S US
Fire damper actuator, 8 Nm, Spring return, AC 230 V, Open/close, 2x SPDT
Voltage AC/DC:
AC 230 V
Power Consumption (Running) FS:
27 VA
Power Consumption (Holding) FS:
5 W, 9 VA (60 Hz 6.5 VA), End stop 55 VA, 0.25 A slow blow fuse *
Auxiliary switches:
2x SPDT
Connection Supply:
3 Leads 0.9 m, 18 AWG with 1/2" NPT conduit connector
Connection Auxiliary Switch:
Cable 0.9 m, 6x 18 AWG appliance cable with 1/2" NPT conduit connector
Torque:
8 Nm
Control type:
Open/close
Direction Of Motion Motor:
Selectable by ccw/cw mounting
Direction of rotation (fail-safe):
Reversible with cw/ccw mounting
Angle of rotation:
95°
Running time (motor):
15 s / 90°
Running time (fail-safe):
15 s
Protection category:
IP40
Degree Of Protection NEMA:
NEMA 1
Enclosure Type:
UL Enclosure Type 1
Ambient Temperature:
0...50°C [32...122°F]
