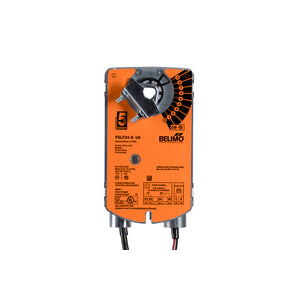

FSLF24-S US

Fire damper actuator, 3.5 Nm, Spring return, AC/DC 24 V, Open/close, 2x SPST

Voltage AC/DC:
AC/DC 24 V

Power Consumption (Running) FS:
15 VA

Power Consumption (Holding) FS:
2.5 W, 3.5 VA, End stop 25 VA, 1 A slow blow fuse *

Power Consumption For Wire Sizing:
24 VA

Auxiliary switches:
2x SPST

Connection Supply:
2 Leads 0.9 m, 18 AWG with 1/2" NPT conduit connector

Connection Auxiliary Switch:
Cable 0.9 m, 4x 18 AWG appliance cable with 1/2" NPT conduit connector

Torque:
3.5 Nm

Control type:
Open/close

Direction Of Motion Motor:
Selectable by ccw/cw mounting

Direction of rotation (fail-safe):
Reversible with cw/ccw mounting

Angle of rotation:
95°

Running time (motor):
15 s / 90°

Running time (fail-safe):
<15 s

Protection category:
IP30

Degree Of Protection NEMA:
NEMA 1

Enclosure Type:
UL Enclosure Type 1

Ambient Temperature:
0...50°C [32...122°F]
