FSAFB24-SR
by Belimo
Original price
$553.00
-
Original price
$553.00
Original price
$553.00
$553.00
-
$553.00
Current price
$553.00

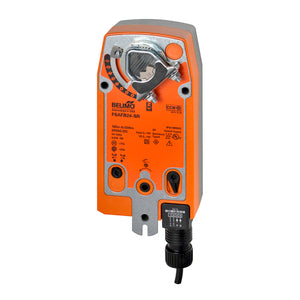

Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V, modulating
Product Specification
Voltage AC/DC:
AC/DC 24 V
Power Consumption (Running) FS:
6 W, 9.5 VA
Power Consumption (Holding) FS:
3 W, 5 VA
Power Consumption For Wire Sizing:
10 VA
Torque:
20 Nm
Control type:
DC 2...10 V
Direction Of Motion Motor:
Selectable by ccw/cw mounting
Direction of rotation (fail-safe):
Reversible with cw/ccw mounting
Manual override:
5 mm hex crank (3/16" Allen), supplied
Angle of rotation:
95°
Running time (motor):
75 s / 90°
Running time (fail-safe):
<20 s
Protection category:
IP54
Degree Of Protection NEMA:
NEMA 2
Enclosure Type:
UL Enclosure Type 2
Ambient Temperature:
-30...50°C [-22...122°F]
