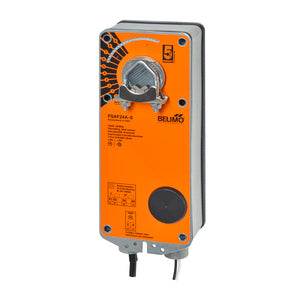

FSAF24A-S
Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V, Open/close, 2x SPST
Product Specification
Voltage AC/DC:
AC/DC 24 V
Power Consumption (Running) FS:
32 VA
Power Consumption (Holding) FS:
5 W, 8.5 VA, End stop 47 VA, 2 A slow blow fuse *
Power Consumption For Wire Sizing:
40 VA
Auxiliary switches:
2x SPST
Connection Supply:
2 Leads 0.9 m, 18 AWG with 1/2" NPT conduit connector
Connection Auxiliary Switch:
Cable 0.9 m, 4x 18 AWG appliance cable with 1/2" NPT conduit connector
Torque:
20 Nm
Control type:
Open/close
Direction Of Motion Motor:
Selectable by ccw/cw mounting
Direction of rotation (fail-safe):
Reversible with cw/ccw mounting
Angle of rotation:
95°
Running time (motor):
25 s / 90°
Running time (fail-safe):
<15 s
Protection category:
IP40
Degree Of Protection NEMA:
NEMA 1
Enclosure Type:
UL Enclosure Type 1
Ambient Temperature:
0...50°C [32...122°F]
