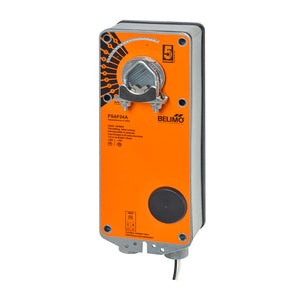

FSAF24A
Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V, Open/close
Voltage AC/DC:
AC/DC 24 V
Power Consumption (Running) FS:
32 VA
Power Consumption (Holding) FS:
5 W, 8.5 VA, End stop 47 VA, 2 A slow blow fuse *
Power Consumption For Wire Sizing:
40 VA
Connection Supply:
2 Leads 0.9 m, 18 AWG with 1/2" NPT conduit connector
Torque:
20 Nm
Control Type:
Open/close
Direction of Motion Motor:
Selectable by ccw/cw mounting
Direction of Rotation (Fail-Safe):
Reversible with cw/ccw mounting
Angle of Rotation:
95°
Running Time (Motor):
25 s / 90°
Running Time (Fail-Safe):
<15 s
Protection Category:
IP40
Degree of Protection NEMA:
NEMA 1
Enclosure Type:
UL Enclosure Type 1
Ambient Temperature:
0...50°C [32...122°F]
