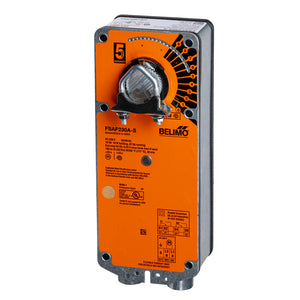

FSAF230A-S
Fire damper actuator, 20 Nm, Spring return, AC 230 V, Open/close, 2x SPST
Specifications
Voltage AC/DC:
AC 230 V
Power Consumption (Running) FS:
37 VA
Power Consumption (Holding) FS:
10 W, 19 VA (60 Hz 12 VA), End stop 54 VA, 0.25 A slow blow fuse *
Auxiliary Switches:
2x SPST
Connection Supply:
3 Leads 0.9 m, 18 AWG with 1/2" NPT conduit connector
Connection Auxiliary Switch:
Cable 0.9 m, 4x 18 AWG appliance cable with 1/2" NPT conduit connector
Torque:
20 Nm
Control Type:
Open/close
Direction of Motion Motor:
Selectable by ccw/cw mounting
Direction of Rotation (Fail-Safe):
Reversible with cw/ccw mounting
Angle of Rotation:
95°
Running Time (Motor):
25 s / 90°
Running Time (Fail-Safe):
<15 s
Protection Category:
IP40
Degree of Protection NEMA:
NEMA 1
Enclosure Type:
UL Enclosure Type 1
Ambient Temperature:
0...50°C [32...122°F]
