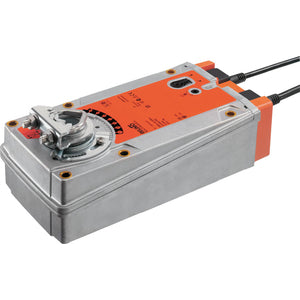

EF24A-S2

Rotary actuator fail-safe, 30 Nm, AC/DC 24 V, Open/close, 75 s, 2x SPDT, IP54

Electrical Actuator

• Voltage AC/DC:
  AC/DC 24 V

• Power consumption (running):
  9.5 W

• Power consumption (holding):
  4.5 W

• Power Consumption For Wire Sizing:
  16 VA

• Auxiliary switches:
  2x SPDT

• Connection Supply Control:
  Cable 1 m, 2x 0.75 mm² (halogen-free)

• Connection Auxiliary Switch:
  Cable 1 m, 6x 0.75 mm² (halogen-free)

• Torque:
  30 Nm

• Control type:
  Open/close

• Direction Of Motion Motor:
  Selectable by mounting L/R

• Direction of rotation (fail-safe):
  Selectable by mounting L/R

• Manual override:
  By means of hand crank and locking switch

• Angle of rotation:
  95°

• Running time (motor):
  75 s / 90°

• Running time (fail-safe):
  <20 s

• Mechanical interface:
  Universal shaft clamp 12...26.7 mm

• Protection category:
  IP54

• Ambient Temperature:
  -30...50°C [-22...122°F]
