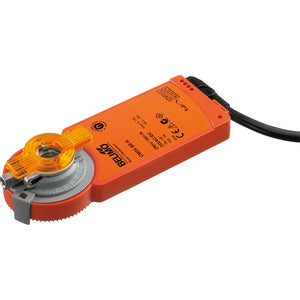

CM24-SR-R | Rotary actuator

Rotary actuator, 2 Nm, AC/DC 24 V, 2...10 V, 75 s, IP54

Actuator Specifications

• Voltage:
  AC/DC 24 V

• Power Consumption:

  • Running: 1 W
  • Holding: 0.5 W
  • For Wire Sizing: 1.5 VA

• Connection Supply Control:
  Cable, 1 m long, 4x 0.75 mm²

• Torque:
  2 Nm

• Control Type:
  DC 2...10 V

• Direction of Motion (Motor):
  Clockwise rotation

• Manual Override:
  With magnet

• Angle of Rotation:
  95°

• Running Time (Motor):
  75 seconds per 90°

• Mechanical Interface:
  Universal shaft clamp, 6 to 12.7 mm

• Protection Category:
  IP54

• Degree of Protection (NEMA):
  NEMA 2

• Enclosure Type:
  UL Enclosure Type 2

• Ambient Temperature:
  -30 to 50°C (-22 to 122°F)
