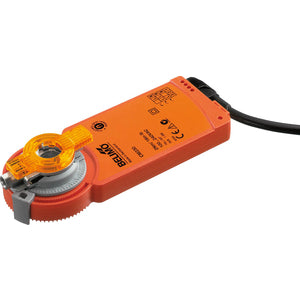

CM230-R | Rotary actuator

Rotary actuator, 2 Nm, AC 100...240 V, Open/close, 3-point, 75 s, IP54

Actuator Specifications

• Voltage AC/DC:
  AC 100...240 V

• Power Consumption (Running):
  1.5 W

• Power Consumption (Holding):
  1 W

• Power Consumption For Wire Sizing:
  3 VA

• Connection Supply Control:
  Cable 1 m, 3x 0.75 mm²

• Torque:
  2 Nm

• Control Type:
  Open/close, 3-point

• Direction Of Motion Motor:
  Clockwise rotation

• Manual Override:
  With magnet

• Angle of Rotation:
  0...287.5°

• Running Time (Motor):
  75 s / 90°

• Mechanical Interface:
  Universal shaft clamp 6...12.7 mm

• Protection Category:
  IP54

• Degree Of Protection NEMA:
  NEMA 2

• Enclosure Type:
  UL Enclosure Type 2

• Ambient Temperature:
  -30...50°C [-22...122°F]
