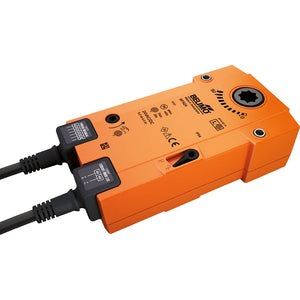

BFN230 | Fire damper actuator

Fire damper actuator, 9 Nm, AC 230 V, Open/close, 60 s, 2x SPDT, IP54, Cable

Actuator

• Voltage AC/DC:
  AC 230 V

• Power Consumption (Running):
  4.5 W

• Power Consumption (Holding):
  2 W

• Power Consumption for Wire Sizing:
  9 VA

• Auxiliary Switches:
  2x SPDT

• Connection Supply Control:
  Cable 1 m, 2x 0.75 mm² (halogen-free)

• Connection Auxiliary Switch:
  Cable 1 m, 6x 0.75 mm² (halogen-free)

• Torque:
  9 Nm

• Control Type:
  Open/close

• Direction of Motion Motor:
  Selectable by mounting L/R

• Manual Override:
  With position stop

• Angle of Rotation:
  95°

• Running Time (Motor):
  <60 s / 90°

• Running Time (Fail-Safe):
  20 s

• Mechanical Interface:
  Form fit 12x12 mm, continuous hollow shaft

• Protection Category:
  IP54
