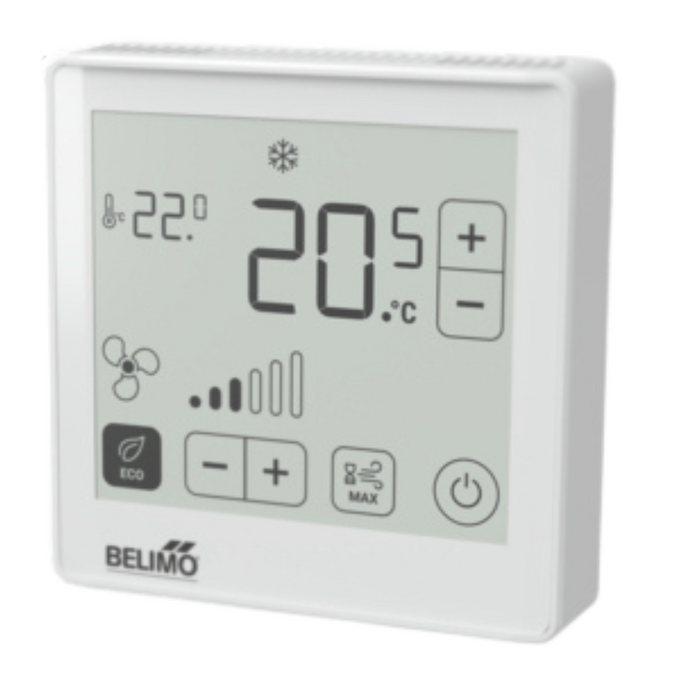

P-22RTM-1900D-1

Sensor

Voltage AC/DC:
AC/DC 24 V

Electrical Connection:
Terminals

Measured Values:

• CO₂
• Temperature
• Humidity

Output Signal:

• 0...5 V
• 0...10 V
• 2...10 V
• MP-Bus

Measuring Range CO₂:
Default setting: 0...2000 ppm

Measuring Range Humidity:
Default setting: 0...100% RH

Measuring Range Temperature:
0...50°C [32...122°F]

Communication:
MP-Bus

Output Voltage [Range]:

• 2 x 0...5 V, 0...10 V, 2...10 V (Type P-22RT-1900D-1)
• 3 x 0...5 V, 0...10 V, 2...10 V (Type P-22RTH-1900D-1, P-22RTM-1900D-1)

Output Signal Active Note:

• Output 0...5 V, 0...10 V (factory setting), 2...10 V selectable via NFC
• Minimum resistance: 5 kΩ

Display Type:
ePaper touch display and LED
