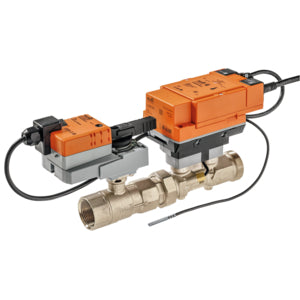

EV015R2+BAC

Electr. 2-way PI-CCV Belimo Energy Valve™, AC/DC 24 V, BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud, 2...10 V, DN 15, Internal and external thread, Rp 1/2"G 3/4", PN 25, ps 1600 kPa, V'nom 0.42 l/s, Fluid temperature -10...120°C [14...248°F], Glycol monitoring

Here's a summary of the valve specifications:

• Pattern: 2-way
• Nominal Flow Rate (V'nom): 0.42 l/s
• Flow Rate Adjustable: 25...100% of V'nom
• Fluid: Cold and warm water, water with glycol up to a maximum of 60% vol.
• Fluid Temperature: -10...120°C [14...248°F]
• Close-off Pressure: 1400 kPa
• Differential Pressure (Δpmax): 350 kPa
• Differential Pressure Note: 200 kPa for low-noise operation
• Flow Characteristic: Equal percentage
• Leakage Rate: Air-bubble tight, leakage rate A
• Pipe Connection: Internal and external thread

Here's a summary of the actuator specifications:

• Voltage: AC/DC 24 V
• Power Consumption (Running): 4 W
• Power Consumption (Holding): 3.7 W
• Power Consumption For Wire Sizing: 6.5 VA
• Connection Supply Control: Cable 1 m, 6x 0.75 mm²
• Connection Ethernet: RJ45 socket
• Control Type:
  • BACnet/IP
  • BACnet MS/TP
  • Modbus TCP
  • Modbus RTU
  • MP-Bus
  • DC 2...10 V
  • DC 0.5...10 V
  • Hybrid (communicative / analogue)
  • Cloud
• Protection Category: IP54
