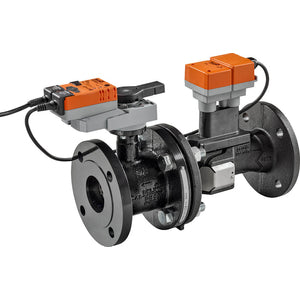

EP125F+MP

Electr. 2-way PI-CCV EPIV, AC/DC 24 V, MP-Bus, 2...10 V, DN 125, Flange, PN 16, ps 1600 kPa, V'nom 31 l/s, Fluid temperature -10...120°C [14...248°F]

Valve

Pattern: 2-way

V'nom [l/s]: 31

Flow Rate Adjustable: 30...100% of V'nom

Fluid: Cold and warm water, water with glycol up to max. 50% vol.

Fluid Temperature: -10...120°C [14...248°F]

Close-off Pressure: 690 kPa

Differential Pressure Δpmax: 340 kPa

Flow Characteristic: Equal percentage

Leakage Rate: Air-bubble tight, leakage rate A

Pipe Connection: Flange

Actuator

Voltage AC/DC: AC/DC 24 V

Power Consumption (Running): 9 W

Power Consumption (Holding): 6 W

Power Consumption For Wire Sizing: 12 VA

Connection Supply Control: Cable 1 m, 6x 0.75 mm²

Control Type: BACnet MS/TP
Modbus RTU
MP-Bus
DC 2...10 V
DC 0.5...10 V
Hybrid (communicative / analogue)

Protection Category: IP54
