EP080F+KMP

EP080F+KMP

by Belimo
$5,728.00 - $5,728.00
$5,728.00
$5,728.00 - $5,728.00
$5,728.00

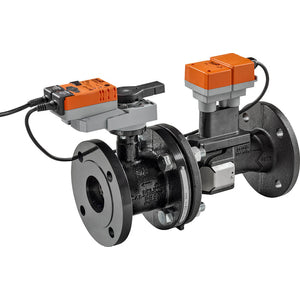

Electr. 2-way PI-CCV EPIV fail-safe, AC/DC 24 V, MP-Bus, 2...10 V, DN 80, Flange, PN 16, ps 1600 kPa, V'nom 11 l/s, Fluid temperature -10...120°C [14...248°F]

Valve

  • Pattern:
    2-way

  • V'nom [l/s]:
    11

  • Flow Rate Adjustable:
    30...100% of V'nom

  • Fluid:
    Cold and warm water, water with glycol up to max. 50% vol.

  • Fluid Temperature:
    -10...120°C [14...248°F]

  • Close-off Pressure:
    690 kPa

  • Differential Pressure Δpmax:
    340 kPa

  • Flow Characteristic:
    Equal percentage

  • Leakage Rate:
    Air-bubble tight, leakage rate A

  • Pipe Connection:
    Flange

Actuator

  • Voltage AC/DC:
    AC/DC 24 V

  • Power Consumption (running):
    10 W

  • Power Consumption (holding):
    5 W

  • Power Consumption For Wire Sizing:
    20 VA

  • Connection Supply Control:
    Cable 1 m, 4x 0.75 mm²

  • Control Type:
    MP-Bus
    DC 2...10 V
    DC 0.5...10 V

  • Protection Category:
    IP54
