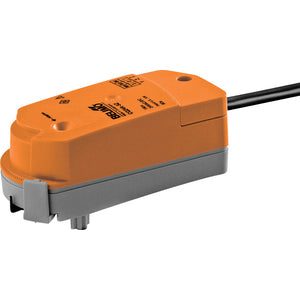

CQ24A-SR | Rotary actuator

Rotary actuator (ZoneTight), 1 Nm, AC/DC 24 V, 2...10 V, 75 s, IP40

Actuator Specifications

• Voltage:
  AC/DC 24 V

• Power Consumption:

  • Running: 0.3 W
  • Holding: 0.3 W
  • For Wire Sizing: 0.6 VA

• Connection Supply Control:
  Cable, 1 m long, 4x 0.34 mm²

• Torque:
  1 Nm

• Control Type:
  DC 2...10 V

• Manual Override:
  With actuator (clicked out)

• Running Time (Motor):
  75 seconds per 90°

• Protection Category:
  IP40

• Ambient Temperature:
  5 to 40°C (41 to 104°F)
