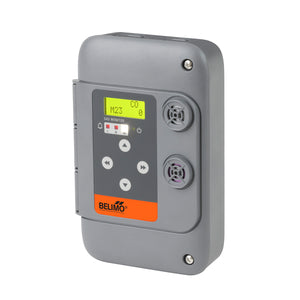

22G02-5A | Gas monitor

Gas monitor, CO, CO: 0...250 ppm, CAN bus, BACnet MS/TP, Auxiliary switch 1x SPDT, Number of relays 1

CO and Temperature Sensor with BACnet and CAN Bus Communication

• Voltage AC/DC
  AC/DC 24 V

• Measured values
  CO (Carbon Monoxide)
  Temperature

• Output signal
  BACnet
  CAN bus
  2...10 V
  4...20 mA
  Relay

• Measuring range temperature
  -20...50°C [-4...122°F]

• Measuring range CO
  0...250 ppm

• Communication
  CAN bus
  BACnet MS/TP

• Output signal relay note
  Relays: SPDT, 5A @ AC 125 V, non-inductive
  (Please see remarks section for relay rating.)

• Output signal active note
  Analog outputs: 2...10 V or 4...20 mA, user selectable with jumper

• Display type
  LCD
